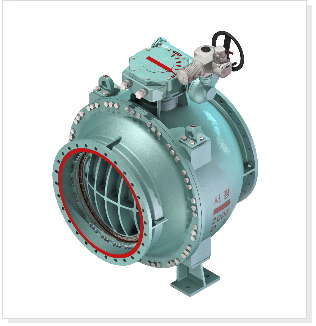

| HOME > PRODUCTS > SEGMENT BALL VALVE
|
 |
 |
|
 |
- Specification : 200mm ~ 2400mm
- Operation Mode : Manual,Electric, Hydraulic, Pneumonic
- Operation Pressure : 4.5kgf/cm² ~ 20 kgf/cm²
- Type : Horizontal, Vertical
- Certificate : Excellent Performance Certificate (No. 15-297) |
|
 |
|
| |
 |
ㅁ Suitable for large water control pipes.
ㅁ Full port for less head loss and quite flow.
ㅁ Easy opening and closing even with sludge inside.
ㅁ The ball is segmented (fan-shaped) for light weight and low control power.
ㅁ The valve body consists of two parts assembled by bolts. If a leakage occurs due to the worn seat, the seat contact gap
can be adjusted by the external controller. |
| |
| |
Improved Method |
Existing Method |
| Method |
 |
 |
| Flow Control |
Very Good (Positive Pressure) |
Medium |
| Pressure |
4.5kgf/cm² ~10 kgf/cm² |
4.5kgf/cm² ~ 10 kgf/cm² |
| Features |
Available for flow control (2 in 1 )
Available for flushing.
Low control torque.
Full port. |
Combination of water control
valve and flow control valve.
High control torque for the gate valve. |
|
|
|
| |
|
|
