- Specification : 200mm ~ 1000mm
- Operation Pressure : 4.5kgf/cm² ~ 20kgf/cm²
- Type : Horizontal
- Certificate : Excellent Performance Certificate (No. 15-040) |
|
| |
|
| |
 |
ㅁ Installed at the outlet of the pump to prevent the pump from water shock and backward flow.
ㅁ Weight for hydraulic closure.
ㅁ The full shutoff dash port operates in two-stage motion.
The first stage (85~90%) is used for urgent shutoff and the 2nd
stage (10~15%) is used for full shutoff. In this way, the water shock, vibration and noise are reduced.
ㅁ If two dash ports are used, they are installed in both sides to prevent the axis from breaking abnormally by having the same
torsion applied to both valve axes. |
| |
|

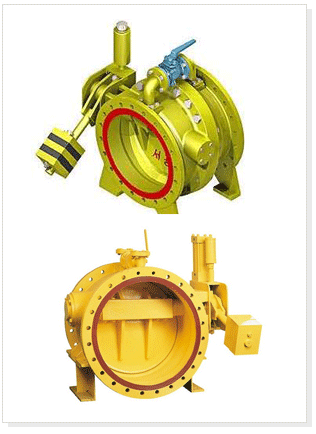

check valves hydraulic |
|
|
