- Specification : 200mm ~ 3000mm
- Operation Mode : Manual, Electric, Hydraulic, Pneumatic
- Operation Pressure : 4.5kgf/cm² ~ 20 kgf/cm²
- Type : Horizontal, Vertical
- Certificate :
KS (No. 2333 and 4096)
Certificate of Designation of Excellent Product (No. 2006020)
Excellent Performance Certificate (No. 15-037)
Certificate of New Excellent Product Certificate
(No. Certificate of New Excellent Product -2005-110) |
|
 |
|
| |
 |
ㅁ The body and the disk seat are made of metal. The body seat is pressed to the disk seat by internal pressure, which
increases sealing efficiency in both forward and backward directions.
ㅁ Based on analysis of existing metal seats, the optimal technology is applied to produce this valve. As a result, leakage
prevention effect is improved compared to the existing metal-seated butterfly valve. |
| |
| |
Section View of the Seat |
| Section |
 |
| Flow Control |
Very Good (Positive Pressure) |
| Pressure |
4.5kgf/cm² ~ 20 kgf/cm² |
| Features |
It is easy to assemble. The seat contact can be adjusted. Since flow is controlled bi-directionally, it can be installed freely regardless of flow directions. |
|
|
|

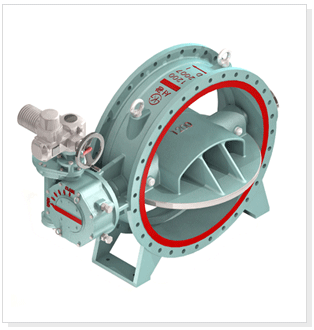

METAL SEATED BUTTERFLY VALVE |
|
|
